Comes with Jonair’s famous unconditional 12 month warranty

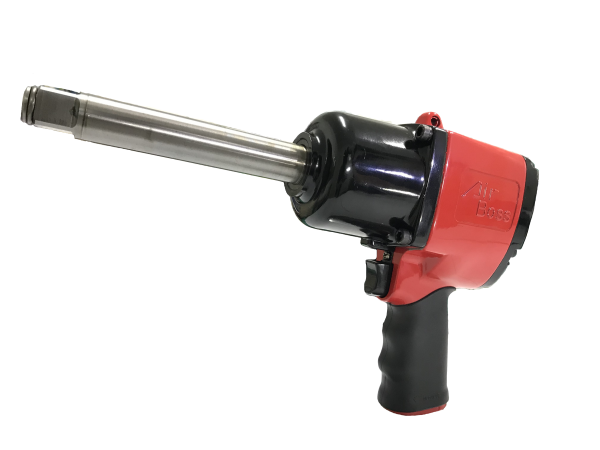

| Model | AB-230PL 3/4″ |
|---|---|
| Bolt Capacity (mm) | 23 |
| Clutch Mechanism | Twin Hammer |
| Free Speed (r.p.m.) | 6500 |
| Suitable Torque (ft-lb / N.m) | 265-584 / 360-720 |
| Max Torque (ft-lb / N.m) | 730 / 990 |
| Overall Length (mm) | 317 |
| Net Weight (lbs / kg) | 9.3 / 4.2 |
| Air Consumption (m³ / min) | 0.4 |
| Air Inlet (PT/NPT/PF) | 3/8″ |
| Air Hose (mm) | 9.5 |
| Air Pressure (kg / cm²) | 6.3 |
There are no reviews yet.
Super Light Air Impact Gun for Truck Wheels Specification Model AW-170P 3/4″ Bolt Capacity (mm) 23 Clutc
Customers who purchased this also purchased
SICE S783 Universal Compact Truck Wheel Balancer: Elevating Precision in Wheel Balancing
Innovative Features for Professionals
Discover the cutting-edge technology of the SICE S783, a universal compact truck wheel balancer tailored for mobile service, workshops, and garages. Its inverter-driven motorized spin version, automatic wheel size detector, and electric brake redefine the standards for professional wheel balancing equipment.
User-Friendly Display
Navigate through a seamless balancing experience with the SICE S783's intuitive display. Offering immediate and intuitive access to all balancing programs, the high-brightness screen is easily adjustable to suit any working environment. Its modern and bright interface ensures effortless usability, even in the brightest working conditions.
Precision Balancing for All Vehicles
The new-generation spin and measurement unit of the SICE S783 operate at low speed, reducing spin times and risks associated with rotating elements. This not only ensures energy savings but also guarantees precision and reliability in balancing. Whether you deal with heavy-duty vehicles, light-duty vehicles, off-road vehicles, or cars, this wheel balancer accommodates all wheel types.
Efficient Integrated Wheel Lifter
Experience the convenience of the integrated wheel lifter, manually operated without cumbersome pedals. Capable of lifting wheels weighing up to 150kg, it facilitates excellent wheel centering while protecting your back from strain. Fast, robust, and ergonomic, the integrated wheel lifter complements the SICE S783's commitment to efficiency and user comfort.
Invest in SICE's S783 Universal Compact Truck Wheel Balancer and match it up with SICE S52A for a perfect blend of compact design, professional-grade features, and advanced technical solutions. Elevate your wheel balancing operations with a tool designed for those who demand the best without compromise. SICE S783: Precision in compact design. Elevate wheel balancing with innovative features, intuitive display, and an efficient lifter. Ideal for workshops and mobile services, it's the epitome of reliability and convenience.| Model | AW-170P 3/4" |
|---|---|
| Bolt Capacity (mm) | 23 |
| Clutch Mechanism | New Twin Hammer |
| Free Speed (r.p.m.) | 6,600 |
| Suitable Torque (ft-lb / N.m) | 310 - 620/ 420 - 840 |
| Max Torque (ft-lb / N.m) | 885 / 1200 |
| Overall Length (mm) | 227 |
| Net Weight (lbs / kg) | 7.0 / 3.2 |
| Air Consumption (m³ / min) | 0.4 |
| Air Inlet (PT/NPT/PF) | 3/8" |
| Air Hose (mm) | 9.5 |
| Air Pressure (kg / cm²) | 6.3 |
| Model | AB-230PL 3/4" |
|---|---|
| Bolt Capacity (mm) | 23 |
| Clutch Mechanism | Twin Hammer |
| Free Speed (r.p.m.) | 6500 |
| Suitable Torque (ft-lb / N.m) | 265-584 / 360-720 |
| Max Torque (ft-lb / N.m) | 730 / 990 |
| Overall Length (mm) | 317 |
| Net Weight (lbs / kg) | 9.3 / 4.2 |
| Air Consumption (m³ / min) | 0.4 |
| Air Inlet (PT/NPT/PF) | 3/8" |
| Air Hose (mm) | 9.5 |
| Air Pressure (kg / cm²) | 6.3 |
• Appealing design and shapes designed to allow maximum access to inside the wheel. The numerous weight-holder trays, compartments for cones and accessories and the adjustable monitor guarantee maximum work ergonomics.
• The tray is made of highly resistant materials.
WHEEL GUARD
• The new wheel guard allows use whit wheel sizes up to 44”.
SPIN UNIT
• Sized to work with high offset wheels without the need for additional spacers.
• Automatic brake at the end of the spin.
• Reduced cycle time and high performance.
• The “zero” maintenance motor and highly innovative design solutions guarantee reliability, sturdiness and high work loads.
LED SPOTLIGHT
• LED spotlight to light-up the work area and make it easier to clean the rim,
check the wheel and apply weights.
• The adhesive counterweights can be positioned extremely rapidly using the laser pointer at 6 o’clock.
SENSITIVITY CALIBRATION
• Quickly and intuitive sensitivity calibration. The new sample weight supplied with the machine is simply applied
directly to the spin unit, ensuring maximum precision and eliminating operator error.
WHEEL DIMENSION DETECTION / ADHESIVE COUNTERWEIGHTS
• Electronic input of wheel diameter and distance with QP Quick Program function which automatically activates the balancing programmes, avoiding keypad selection.
• Automatic wheel positioning in the point where the balancing weight has to be applied and electrical positioning brake (RPA).
• Three modes to position the adhesive weights: with the weight holder clip (optional), with the 6 o’clock laser indicator or manually at 12 o’clock.
HIDDEN WEIGHT
Programme for concealing counterweights behind spokes for improved wheel aesthetics.
Automatic calculation of the width (AWC function) even if the ES-7 external sensor is not present. The wheel balancer calculates the width by reducing the operational time.
TECHNICAL DATA
Supply voltage 115/230v - 1Ph - 50/60Hz
Spinning speed 90 ÷ 130 rpm
Max. unbalance 999 g
Unbalance measurement accuracy 1g (0,0353 oz)
Average measurement time 7 s
Shaft diameter 40 mm (1,57”)
Rim width setting range 1,5” ÷ 20”
Rim diameter setting range 1” ÷ 35”
Rim diameter measurable 11” ÷ 28”
Max. wheel width (with guard) 600 mm (23,6”)
Max. wheel diameter (with guard) 1117 mm (44”)
Maximum wheel/machine distance 275 mm (10,82”)
Max. wheel weight (ground fastening) 75 kg
Machine weight (without accessories) 193 kg
