MOBILE PASSENGER SERVICE VAN – GUERNET FIXITY
INNOVATIVE, PRACTICAL, FAST, ECONOMICAL, RELIABLE, COMPACT, PROFITABLE, EASY, INGENIOUS

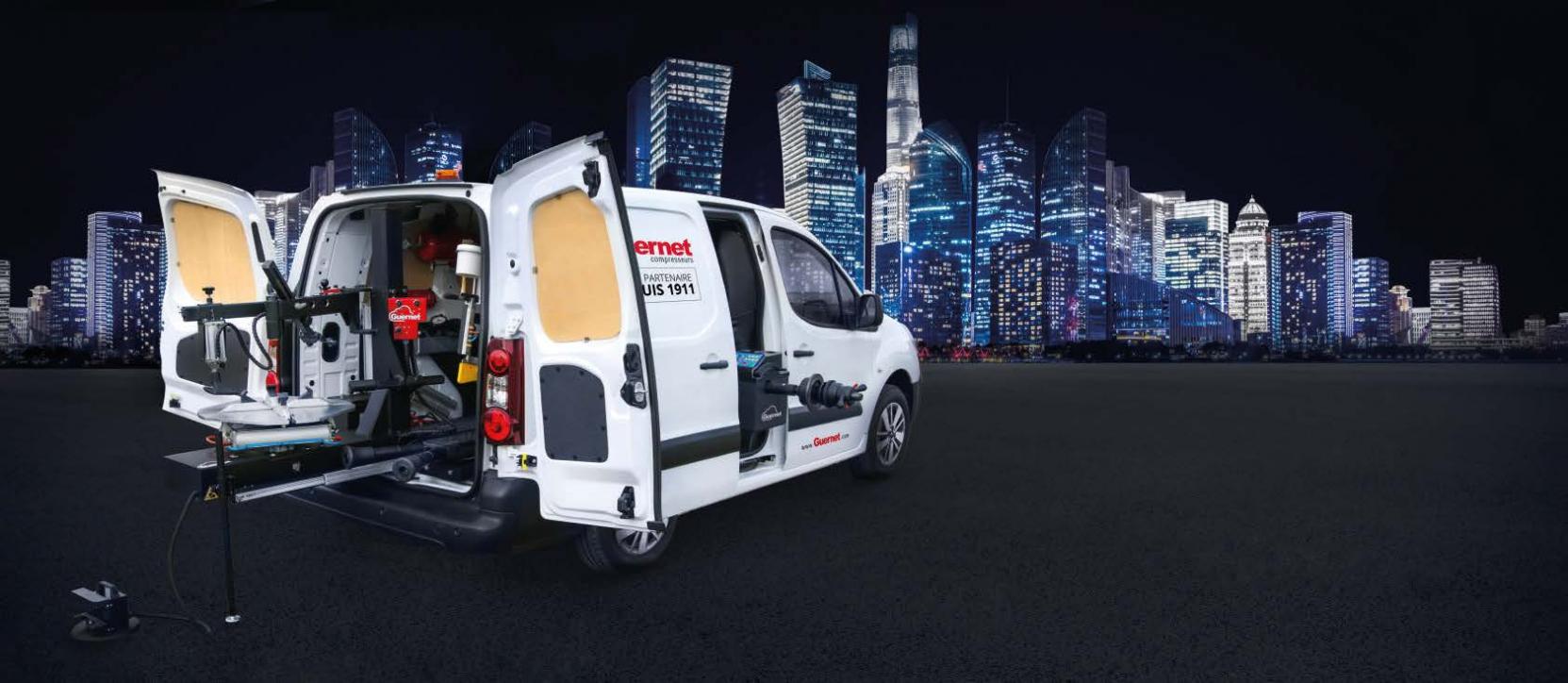

Mobile Passenger Service Van – Guernet Fixity
MADE IN FRANCE, ASSEMBLED ON YOUR VEHICLE IN AUSTRALIA
LIMITLESS ACCESSIBILITY TO UNDERGROUND CAR PARKS, LARGE CITIES, DIFFICULT ACCESS, NARROW STREETS
MAXIMIZE YOUR WORKSPACE
FROM 9,3 TO 2,12m3 OF LOADING VOLUME FOR YOUR COMMERCIAL VEHICLE
AIR COMPRESSOR
Belt driven
Tension : 12 Vdc (1 ph)
Motor rated power : 1,3 kW
Free air delivery : 12m3/h – 200 L/min
Pressure : 10 BAR
Air tank : 17 L
Sound level reducer
MANUAL BEAD-BREAKER
for tyres up to 21’’

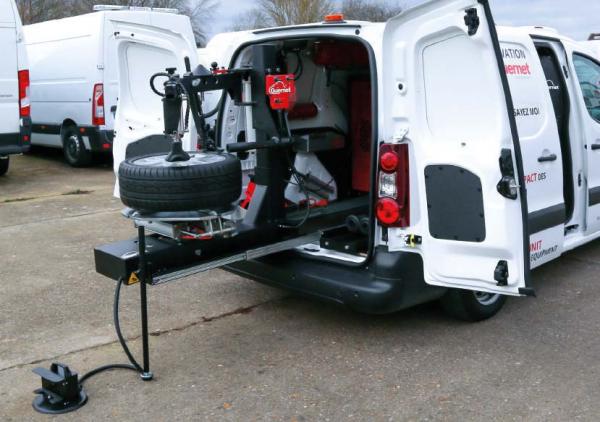

TYRE-CHANGER
for tyres until 22’’
Run Flat
Low profile tyres
Kit of 4 protection rings
for alu rim
WHEEL BALANCER
for tyres until 24’’
Modes : statistics, dynamic, 3 alu
Accessories : width gauge,
quick lock, hex-key to lock shaft,
4 cones (until 135 mm)
COMPLETE EQUIPMENT
Inside lighting
External visibility
Aluminium supports
ACCESSORIES FOR LIFT
Lifting jack
Pneumatic jack
SETS
Visibility set
(exterior van marking)
Lighting set
(interior light)
Security set
(extinguisher, first-aid kit…)
EQUIPMENT
Storage
Various supports for accessories
ACCESSORIES
Inflation gun
Polyurethane Air hose reel
Impact wrenches
Impact sockets
You just bring the Vehicle
SMALL UTILITY VAN
CITROËN Berlingo / Jumpy
RENAULT Kangoo / Trafic
PEUGEOT Partner / Expert
and more
For truck service please check out our complete units from Guernet
• Appealing design and shapes designed to allow maximum access to inside the wheel. The numerous weight-holder trays, compartments for cones and accessories and the adjustable monitor guarantee maximum work ergonomics.
• The tray is made of highly resistant materials.
WHEEL GUARD
• The new wheel guard allows use whit wheel sizes up to 44”.
SPIN UNIT
• Sized to work with high offset wheels without the need for additional spacers.
• Automatic brake at the end of the spin.
• Reduced cycle time and high performance.
• The “zero” maintenance motor and highly innovative design solutions guarantee reliability, sturdiness and high work loads.
LED SPOTLIGHT
• LED spotlight to light-up the work area and make it easier to clean the rim,
check the wheel and apply weights.
• The adhesive counterweights can be positioned extremely rapidly using the laser pointer at 6 o’clock.
SENSITIVITY CALIBRATION
• Quickly and intuitive sensitivity calibration. The new sample weight supplied with the machine is simply applied
directly to the spin unit, ensuring maximum precision and eliminating operator error.
WHEEL DIMENSION DETECTION / ADHESIVE COUNTERWEIGHTS
• Electronic input of wheel diameter and distance with QP Quick Program function which automatically activates the balancing programmes, avoiding keypad selection.
• Automatic wheel positioning in the point where the balancing weight has to be applied and electrical positioning brake (RPA).
• Three modes to position the adhesive weights: with the weight holder clip (optional), with the 6 o’clock laser indicator or manually at 12 o’clock.
HIDDEN WEIGHT
Programme for concealing counterweights behind spokes for improved wheel aesthetics.
Automatic calculation of the width (AWC function) even if the ES-7 external sensor is not present. The wheel balancer calculates the width by reducing the operational time.
TECHNICAL DATA
Supply voltage 115/230v - 1Ph - 50/60Hz
Spinning speed 90 ÷ 130 rpm
Max. unbalance 999 g
Unbalance measurement accuracy 1g (0,0353 oz)
Average measurement time 7 s
Shaft diameter 40 mm (1,57”)
Rim width setting range 1,5” ÷ 20”
Rim diameter setting range 1” ÷ 35”
Rim diameter measurable 11” ÷ 28”
Max. wheel width (with guard) 600 mm (23,6”)
Max. wheel diameter (with guard) 1117 mm (44”)
Maximum wheel/machine distance 275 mm (10,82”)
Max. wheel weight (ground fastening) 75 kg
Machine weight (without accessories) 193 kg
