New Truck Setup in Collaboration with Cooks Bodyworks

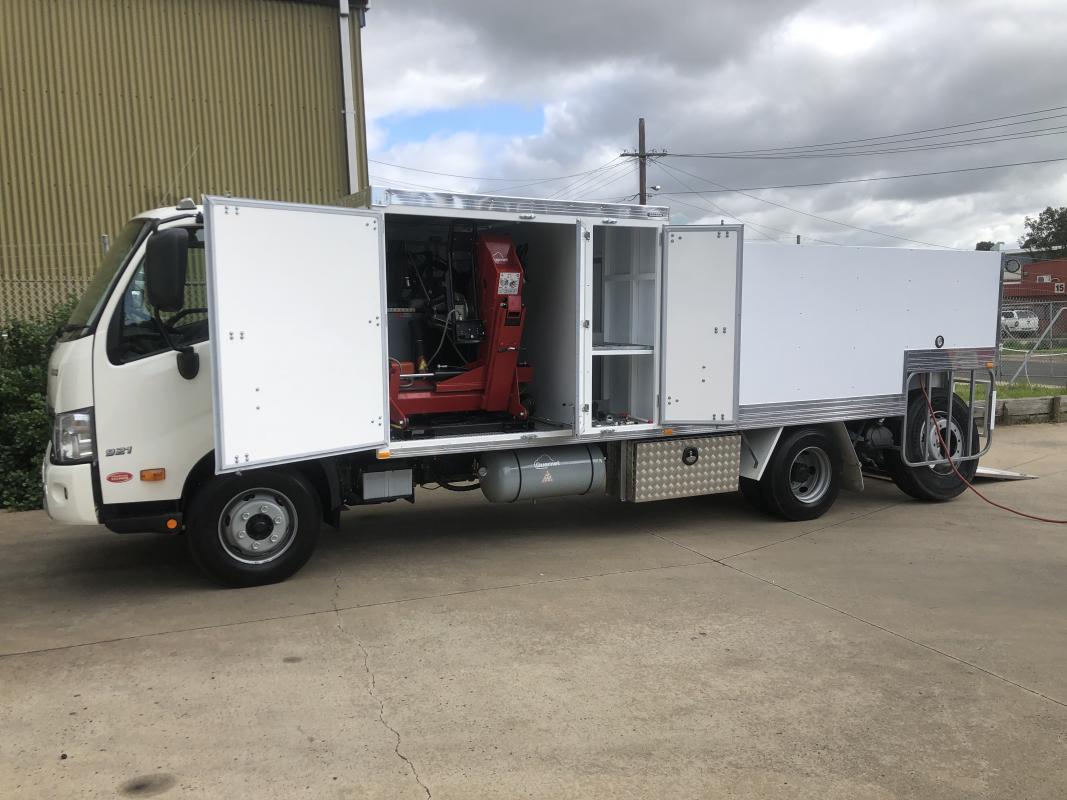

We recently spent some time working with Simon from Cooks Bodyworks who created this fantastic truck for a new customer in Melbourne.
As you can see, they have thought of everything with this unit.
Bringing the compressed air receiver under the truck body has allowed them to keep the truck body super low and with the Tyrebox 126HY mobile truck tyre changer – weighing 150 kilograms less than the closest competitor – onboard they have saved thousands in fuel.
Cooks built this unit on a Hino 300 LWB which has provided plenty of room around the tyre changing unit for access to the motor for scheduled servicing while not losing any space for tools.
This complete truck is able to carry over 18 truck tyres safely while the power of the compressor allows inflation of tyres while still providing huge amounts of pressure to run guns and jacks.
We cant wait to see this truck out on the road and are confident our customer will have a lot of success.
Please give us a call on 03 5277 9932 or email tom@jonair.com.au to see what we can build for you.
Please Click to watch the our Walkaround on youtube
• Appealing design and shapes designed to allow maximum access to inside the wheel. The numerous weight-holder trays, compartments for cones and accessories and the adjustable monitor guarantee maximum work ergonomics.
• The tray is made of highly resistant materials.
WHEEL GUARD
• The new wheel guard allows use whit wheel sizes up to 44”.
SPIN UNIT
• Sized to work with high offset wheels without the need for additional spacers.
• Automatic brake at the end of the spin.
• Reduced cycle time and high performance.
• The “zero” maintenance motor and highly innovative design solutions guarantee reliability, sturdiness and high work loads.
LED SPOTLIGHT
• LED spotlight to light-up the work area and make it easier to clean the rim,
check the wheel and apply weights.
• The adhesive counterweights can be positioned extremely rapidly using the laser pointer at 6 o’clock.
SENSITIVITY CALIBRATION
• Quickly and intuitive sensitivity calibration. The new sample weight supplied with the machine is simply applied
directly to the spin unit, ensuring maximum precision and eliminating operator error.
WHEEL DIMENSION DETECTION / ADHESIVE COUNTERWEIGHTS
• Electronic input of wheel diameter and distance with QP Quick Program function which automatically activates the balancing programmes, avoiding keypad selection.
• Automatic wheel positioning in the point where the balancing weight has to be applied and electrical positioning brake (RPA).
• Three modes to position the adhesive weights: with the weight holder clip (optional), with the 6 o’clock laser indicator or manually at 12 o’clock.
HIDDEN WEIGHT
Programme for concealing counterweights behind spokes for improved wheel aesthetics.
Automatic calculation of the width (AWC function) even if the ES-7 external sensor is not present. The wheel balancer calculates the width by reducing the operational time.
TECHNICAL DATA
Supply voltage 115/230v - 1Ph - 50/60Hz
Spinning speed 90 ÷ 130 rpm
Max. unbalance 999 g
Unbalance measurement accuracy 1g (0,0353 oz)
Average measurement time 7 s
Shaft diameter 40 mm (1,57”)
Rim width setting range 1,5” ÷ 20”
Rim diameter setting range 1” ÷ 35”
Rim diameter measurable 11” ÷ 28”
Max. wheel width (with guard) 600 mm (23,6”)
Max. wheel diameter (with guard) 1117 mm (44”)
Maximum wheel/machine distance 275 mm (10,82”)
Max. wheel weight (ground fastening) 75 kg
Machine weight (without accessories) 193 kg
