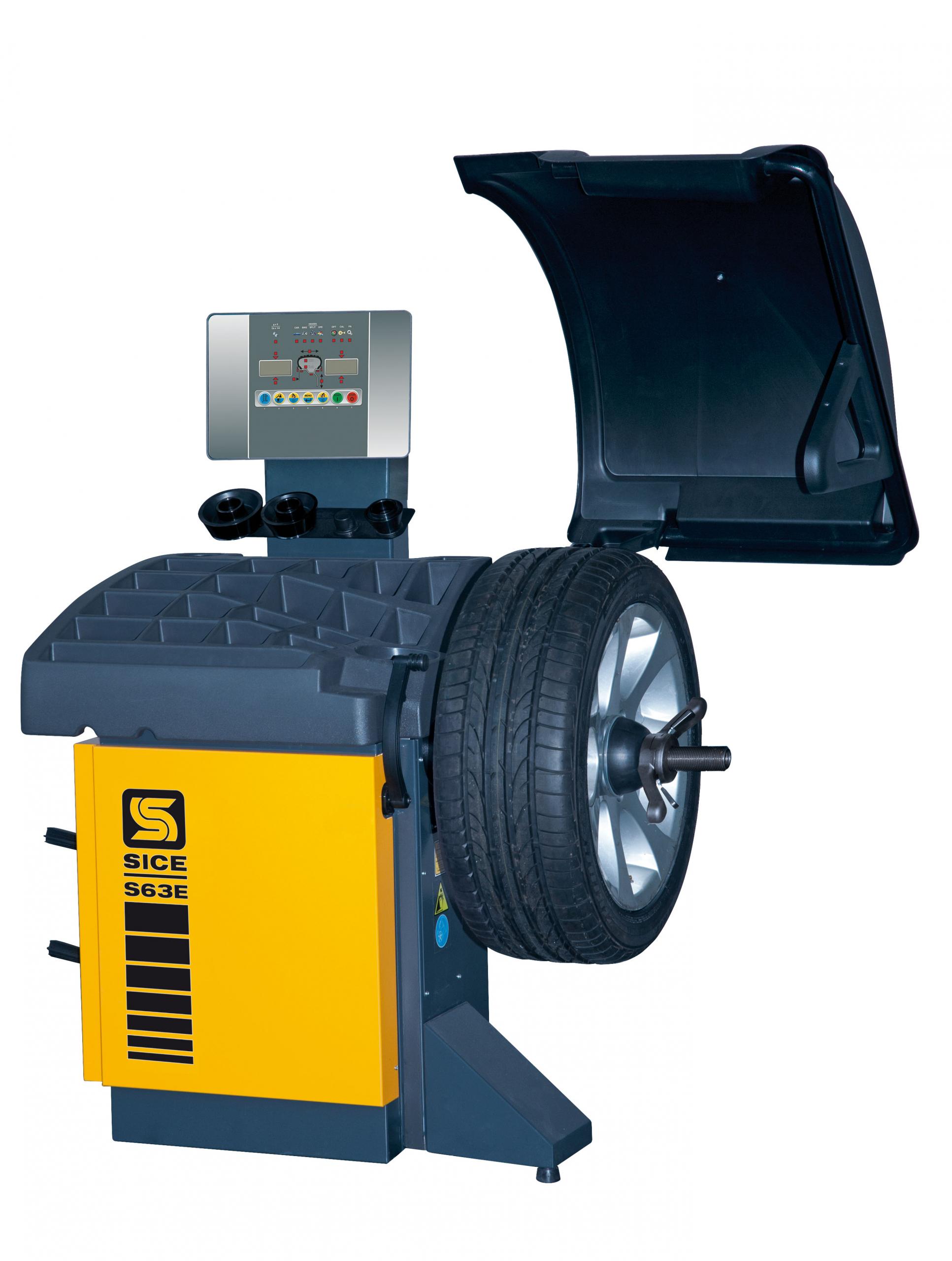

Professional balancing for cars, light transport vehicles and 4WD
Laser, spotlight, speed and ease of use.
LED Screen is perfect for Australian conditions, improving reliability and minimising repairs.
WEIGHT TRAY
• Appealing design and shapes designed to allow maximum access to inside the wheel. The numerous weight-holder trays, compartments for cones and accessories and the adjustable monitor guarantee maximum work ergonomics.
• The tray is made of highly resistant materials.
WHEEL GUARD
• The new wheel guard allows use whit wheel sizes up to 44”.
SPIN UNIT
• Sized to work with high offset wheels without the need for additional spacers.
• Automatic brake at the end of the spin.
• Reduced cycle time and high performance.
• The “zero” maintenance motor and highly innovative design solutions guarantee reliability, sturdiness and high work loads.
LED SPOTLIGHT
• LED spotlight to light-up the work area and make it easier to clean the rim, check the wheel and apply weights.
• The adhesive counterweights can be positioned extremely rapidly using the laser pointer at 6 o’clock.
SENSITIVITY CALIBRATION
• Quickly and intuitive sensitivity calibration. The new sample weight supplied with the machine is simply applied directly to the spin unit, ensuring maximum precision and eliminating operator error.
WHEEL DIMENSION DETECTION / ADHESIVE COUNTERWEIGHTS
• Electronic input of wheel diameter and distance with QP Quick Program function which automatically activates the balancing programmes, avoiding keypad selection.
• Automatic wheel positioning in the point where the balancing weight has to be applied and electrical positioning brake (RPA).
• Three modes to position the adhesive weights: with the weight holder clip (optional), with the 6 o’clock laser indicator or manually at 12 o’clock.
HIDDEN WEIGHT
Programme for concealing counterweights behind spokes for improved wheel aesthetics.
Automatic calculation of the width (AWC function) even if the ES-7 external sensor is not present. The wheel balancer calculates the width by reducing the operational time.
TECHNICAL DATA
Supply voltage 115/230v – 1Ph – 50/60Hz
Spinning speed 90 ÷ 130 rpm
Max. unbalance 999 g
Unbalance measurement accuracy 1g (0,0353 oz)
Average measurement time 7 s
Shaft diameter 40 mm (1,57”)
Rim width setting range 1,5” ÷ 20”
Rim diameter setting range 1” ÷ 35”
Rim diameter measurable 11” ÷ 28”
Max. wheel width (with guard) 600 mm (23,6”)
Max. wheel diameter (with guard) 1117 mm (44”)
Maximum wheel/machine distance 275 mm (10,82”)
Max. wheel weight (ground fastening) 75 kg
Machine weight (without accessories) 193 kg
