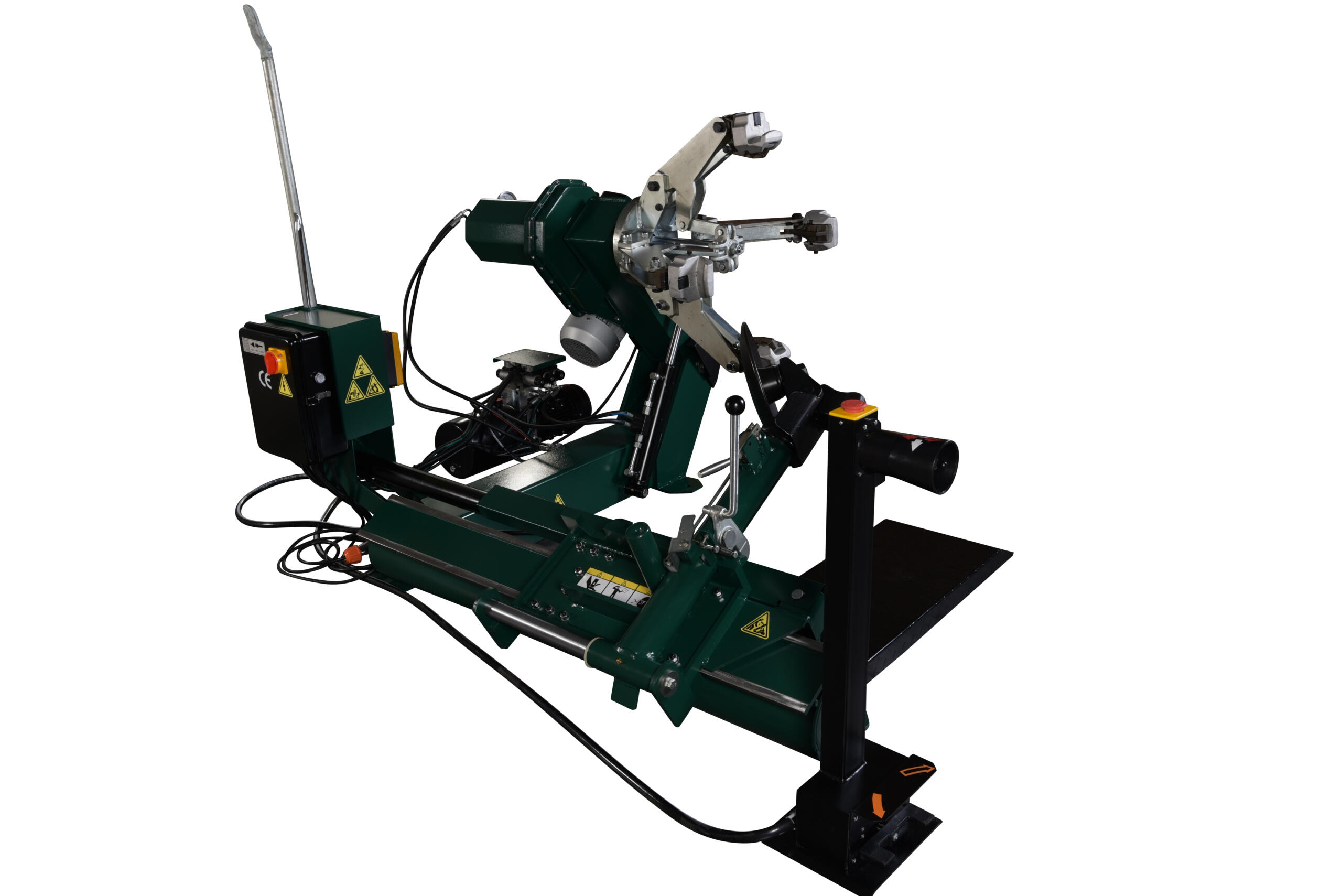

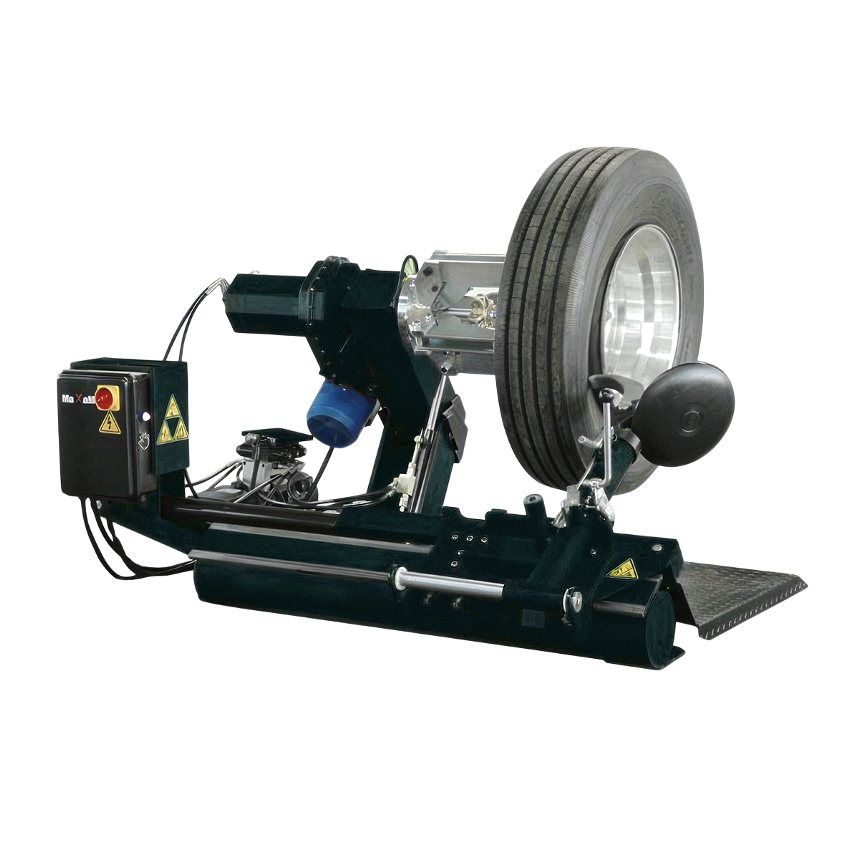

Maxam JA658 – Semi-Automatic Truck Tyre Changer

Maxam JA658 Semi-Automatic Truck Tyre Changer: A Durable Solution by Jonair

Elevate your truck tyre changing operations with the Maxam JA658 Semi-Automatic Truck Tyre Changer. Expertly crafted by Jonair, this semi-automatic tyre changer offers durability and efficiency, essential for optimizing your fleet’s performance.

Versatility at Its Best

Featuring a universal self-centering chuck, the Maxam JA658 ensures precise alignment and effortless tyre changes for trucks, buses, and industrial vehicles. Furthermore, its bi-directional rotation capability enhances operational efficiency, facilitating seamless tyre handling. Additionally, with a rim clamping capacity ranging from 14” to 26”, it adapts effortlessly to a variety of wheels, including tubed or tubeless, groove rim, and split ring rim.

Reliable Performance, Proven Durability

Each Maxam JA658 undergoes rigorous pre-delivery inspection, ensuring optimal performance and reliability. Furthermore, with over 12 years of service in various fleet operations, often requiring no repairs, its durability is unparalleled. Therefore, you can trust the Maxam JA658 to deliver consistent performance day in and day out.

Advanced Features for Enhanced Operation

Transitioning to the advanced features, the Maxam JA658 is equipped with an electro-hydraulic system for demounting and mounting truck, bus, and industrial vehicle wheels. Its hydraulically operated carriage, coupled with the tool holder arm’s manual traverse, ensures smooth operation. Furthermore, a portable control unit adds convenience and flexibility during tyre changing tasks.

Safety Features for Operator Confidence

The Maxam JA658 prioritises operator safety with an array of safety devices, for example;

1. A check valve on the spindle opening hydraulic line prevents wheel fall during hydraulic line breakage.
2. A pilot-operated dual seal check valve safeguards against spindle carrier arm dropping in case of hydraulic circuit failure.
3. A pump motor overload cut-out prevents motor overheating and damage.
4. A mechanical tool arm tip lock device secures the arm in its “non-working position” if the tool is removed.

Technical Specifications

• Rim Diameter: 14” – 26”
• Max Wheel Weight: 500kg
• Max Wheel Width: 780mm
• Max Tyre Diameter: 1600mm
• Hydraulic Pump Motor: 1.5kw 400V – 3ph (240V 1ph Optional)
• Gearbox Motor: 1.8kw 400V – 3ph (240V 1ph Optional)
• Bead Breaker Force: 2500kg
• Operation Control Voltage: 24V
• Approx Machine Weight: 570kg
• Approx Machine Dimensions: 2500mm X 2000mm
• Additional Features: Alu protection kit included as standard, compact footprint for space efficiency.

Elevate Your Workshop Efficiency

Invest in the Maxam JA658 Semi-Automatic Truck Tyre Changer and revolutionize your workshop’s efficiency. With its robust construction, advanced features, and proven durability, it’s the ultimate solution for your tyre changing needs.

Pair the Jonair SC-01 Inflation cage with a Jonair SC-01, a AIRBOSS AB230PL, and a Maxam TB10 for a safe start in your workshop
